Busting Myths about High Performance HMI

The human brain is remarkable. When we process visual information, our mind arranges what we are seeing for understanding, rather than offer a simple reflection of what is shown. However, our ability to do this breaks down when presented with imagery or screens that are overly complex, use too many different colors and don't offer a focal point or logical flow.

Does your HMI or manufacturing automation software display configuration impact labor productivity? Yes! Operational excellence in manufacturing means that when monitoring your production line, workers are expected to practice quick alarm response time while following safety guidelines. If you’re wondering how to improve efficiency in your operation, prioritizing high performance UX design for your factory automation system interface may be the answer.

The image below is an example of a poorly designed HMI. Visually, it’s like the odds and ends drawer in your kitchen where you can never find anything quickly. The best human machine interface solution provides a user-centered experience that helps to ease training and onboarding. Intuitive visualizations are not distracting; modules require no code or little configuration / knowledge to build, and screens clearly notify users about abnormal conditions. This helps control product quality, plan maintenance, and reduce the risk of costly delays or safety incidents.

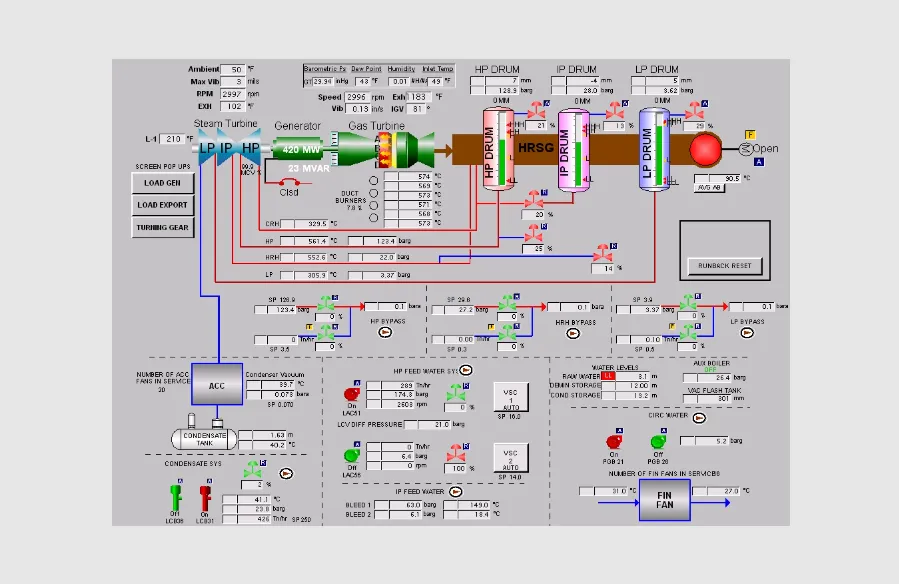

HMI screens like this one are distracting and do not help operators quickly identify abnormalities for alarm management.

As a customer-obsessed company, we know that operators do their best work when satisfied. The future of industrial automation technologies demands high performance HMI, but it is often misunderstood. Let’s breakdown fact from fiction.

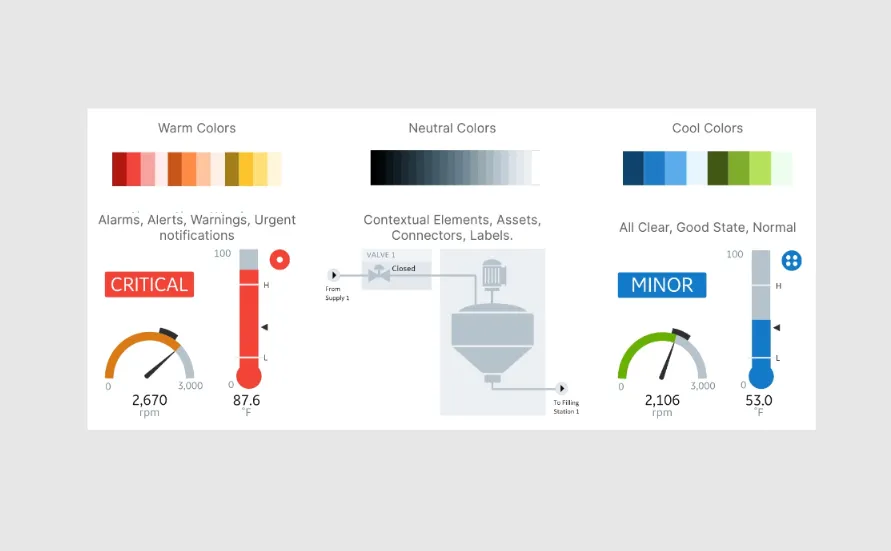

Truth: The High Performance HMI standard covers a wide range of topics that simplify the interface, speed operator response time, improve problem and alarm resolution, while reducing errors and mistakes. Yes, color and grayscale are part of the standard, but it’s not exclusively about color. It includes things like contextual layout, navigation, shapes, typography, and more…

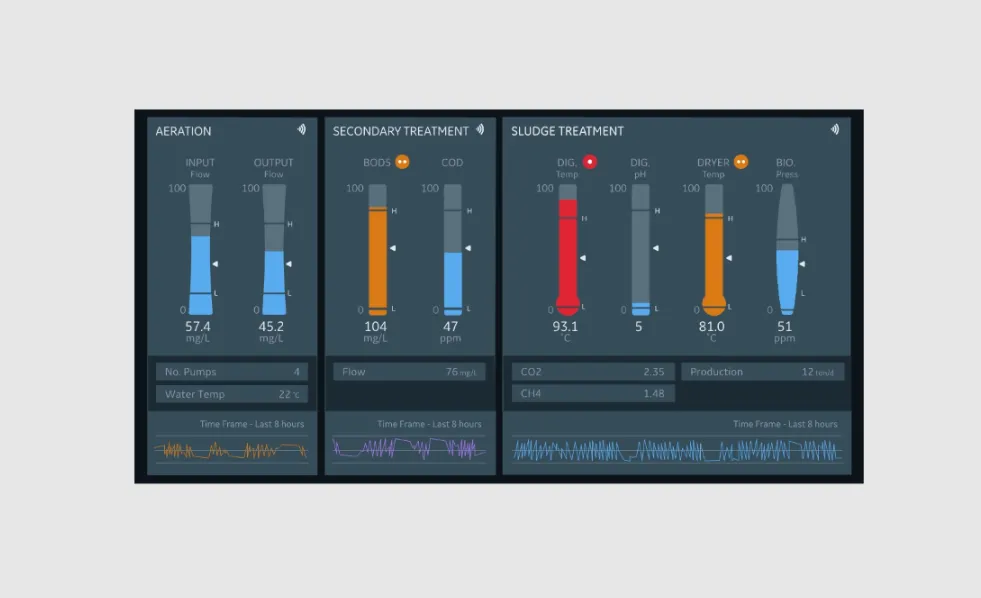

High performance HMI screens take into account colors, contextual layout, shapes and typography

The most effective HMI systems even take lighting into account.

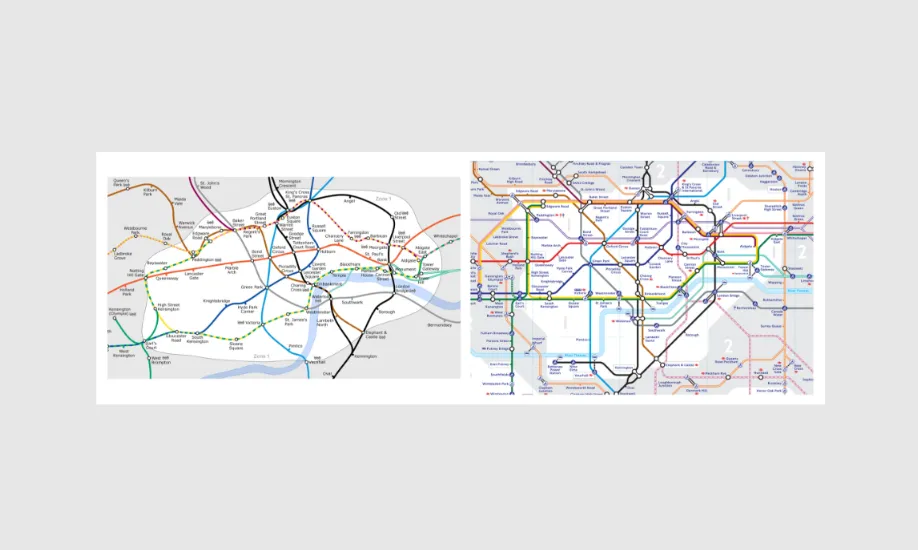

Truth: As the map on the left illustrates the real world can be awfully difficult to navigate. A more structured view we see on the right allows us to more readily visualize our journey.

Structured imagery is much easier to navigate and quickly understand.

When you conduct a web search for optical illusions you will find dozens of examples. They are fun to watch, but more critically, they show us clearly how our brain re-orients visual signals in an attempt to make sense of what we are seeing.

The same principal applies for operators trying to pull out signals from very complex system representations. We need to reflect information in a manner that is easy to scan for anomoly and identify areas that require action.

Truth: High Performance HMI is a framework that can be applied to any environment. It is a proven methodology but by no means requires cookie cutter application. As discussed in the first myth, a wide variety of visual cues can be utilized to personalize screens for purpose. Through the use of simple, repeatable shapes and a basic color palette that highlights abnormal situations, HMI Operators spend less time searching and navigating, and making decisions faster. Keeping it simple also makes it easy to train the next generation of Operator.

Truth: After working so hard to get to know traditional screens, it’s tempting to accept the limitations they inherently offer. Change can be hard, but we’ve seen very experienced operators fall in love with the new approach once a comparison was available. Equally important, the burden on training for less experienced operators drops once more intuitive screens are made available. Similar to decluttering your office, High Performance HMI provides a methodology in decluttering your HMI to make an Operator more efficient, more confident, and less prone to error.

In summary, high performance HMI is a proven way to boost efficiency and increase confidence across operator teams. A good interface is easy to learn, leads to faster reaction time, safer operations and higher productivity. You deserve a system that is intuitive. One that at a glance you can see what actions need to be taken and is easy to navigate.

Don’t miss part 2 in our High Performance HMI blog series, “High Performance HMI: Practical lessons for getting started and leveraging data” by Aaron Knight, Director of Innovation, GrayMatter.
